MODEL NO.

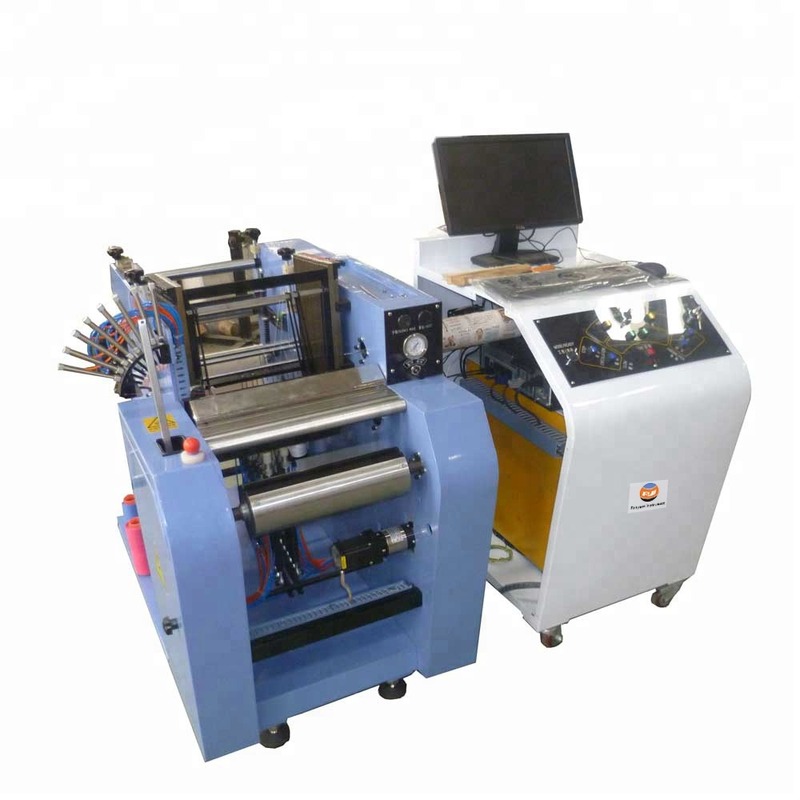

DW598 Lab Sample Loom Weaving Machine For Fabric Test
Application:
Lab Sample Loom Weaving Machine For Fabric Test is used for sample weaving of various fabrics, such as cotton, wool, flax, silk, chemical fibre, blending, etc. It consists of shedding mechanism, weft insertion mechanism, beating-up mechanism, take-up mechanism, let-off mechanism, automatic weft selection mechanism, weft break stop motion, electrical control mechanism, etc. It is widely used in weaving mills, scientific research units, textile institutes and foreign trade companies, etc.
Features for Lab Sample Loom Weaving Machine :
l Consists of control part (computerized control platform) and mechanical part (loom);
l Weft inserting with rigid rapier, suitable for 7s~100s cotton, terylene/cotton, chemical fibre and other fabrics;
l Stepper motor driving let-off device, automatically adjust warp tension;
l Imported pneumatic control element, can control 20pcs heald frame at most, easy to mount and dismount heald frame;
l Heald frame adopts die drawing aluminium alloy profile, with hard oxidation wear-resisting treatment;
l Adjustable pneumatic controlled beating-up mechanism, large force and adjustable moment of force, suitable for fabrics of
high count and high density;
l Electronic control take-up mechanism driving by imported stepper motor and reducer, 10~300pcs/inch of weft density.
Key Specification:
| Reed width | 12 or 20 or 24 inches (optional) |
| Yarn range | 5-500tex |
| Speed | 30~45 weft/min, adjustable |
| Color selection | 8 color, full automatic,pneumatic control |
| No. of heald frame | 4~20 |
| Take-up | stepper motor control |
| Let-off | active electronic control |
| Shedding | computer control, pneumatic |
| Beating-up | pneumatic control or servo motor driving |
| Weft insertion | pneumatic control or servo motor driving |
| Air source | |
| Pressure | 0.45~0.75MPa |
| Air consumption | 530L/min max. (12”), 630L/min (20”, 24”) |
| Power supply | 220V, 50Hz |
